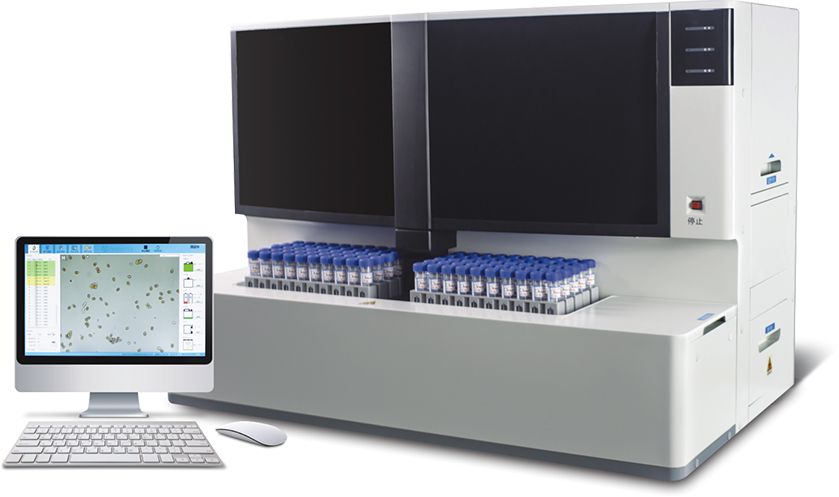

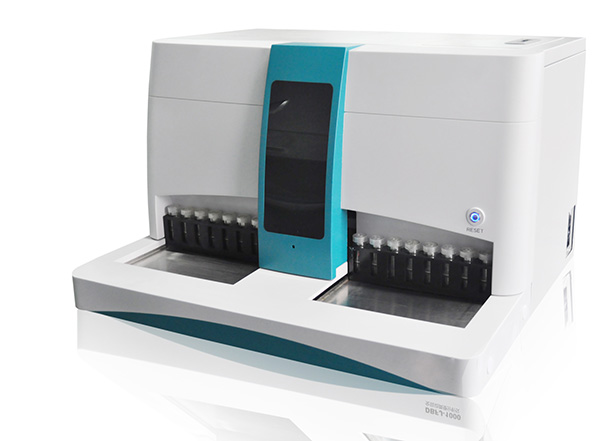

Automatic Stool Analyzer

HALO is the leading manufacturer of automated stool analysis instruments and solutions. Its main business focuses on the automation of stool specimen pre-processing and rapid inspection automation.Has applied for 28 patents and 3 international patents.

We strive to be a leader in the field of automated stool analysis within five years. HALO's mission is to protect and improve the working environment of medical staff / improve the happiness index of medical staff, and is committed to serving the majority of medical staff.

Specification:

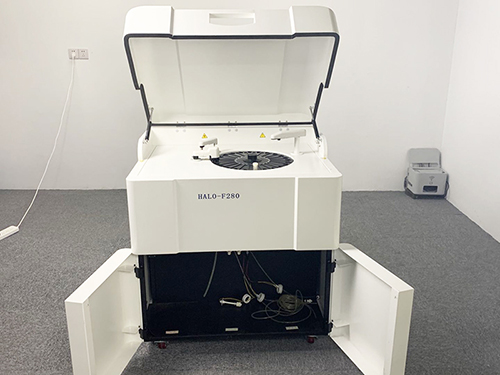

Model NO.	F280/260/240/220
Experimental Model	Single or Batch injection
Sample Tray	Turntable, 24 specimen positions
Needle Cleaning	The suction needle adopts Teflon coating. The inner wall is flushed washed, and the outer wall is flushed with springs to reduce cross pollution
Counting Pool Cleaning	Large water blast cleaning
Ambient Temperature	15℃-35℃
Relative Humidity	≤85%
Atmospheric Pressure	86.0kpa-106.0kpa
Voltage	AC 20±22V
Power Frequency	50HZ±1HZ
Detection Rate	F280	F260	F240	F220
	120	100	90	80
Dimension	900mm×700mm×1080mm
Weight	80Kg
LIS	Support
Windows	Windows7&WindowsXP

Configuration:

NO.	name	Data	Quantity
1	Microscope System	20 times	1
	Imaging System	300,000 Pixels CMOS
2	Operating Software	Connectable to LIS	1
3	Host Signal Connection Wire	DB hole head   1.5M	1
4	Host Power Wire	10AV250V  1.8M	1
5	Host USB Cable	A-DB9   1.8M	1
6	Diluent	10L	1
7	Washing Fluid	10L	1
8	Waste Bucket	10L	1
9	Specimen Box	Disposable	48
10	Computer	500G Rigid Disk	1
11	Operating Instructions		1
12	Conformity Certificate		1
13	Warranty		1

USAGE

Detectable items: fecal hemoglobin, fecal transferrin, carcinoembryonic antigen, rotavirus, adenovirus, norovirus, Helicobacter pylori, cholera, typhoid, etc.

Gastrointestinal tumor

Viral diarrhea

Gastrointestinal infectious diseases

Gastrointestinal parasites

NO	Detection	Detection method
1	Stool routine	General traits, microscopy, eggs and protozoa inspection
2	Fecal occult blood	Hemoglobin immunoassay, chemical method, transferrin
3	Virological test	Rotavirus
4	Bacteriological test	Helicobacter pylori

PRINCIPLE

1. Specimen box principle

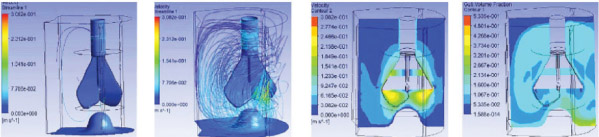

The specimen box is designed according to the principle of fluid mechanics. During the mixing process, a continuous hierarchical “spiral flow” is formed, which has both a high thrust surfing flow and a gentle flapping flow to ensure effective mixing of feces.
2. Function of specimen box

Observe the color and properties of stool

Egg collection function

Automatic filtering and separation of specimens

Sealed and leak-proof

Transfer specimen

Central disinfection

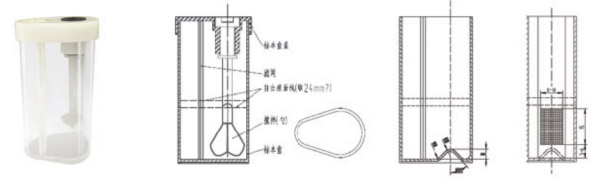

3. Structure of specimen box
The design of the mixing spoon ensures that the stool and the diluent are effectively mixed.
Propeller stirring can ensure that the mucus is more effectively mixed.
Boss design reduces backwater area and ensures effective mixing.
The strainer consists of two types of coarse and fine strainers: the coarse strainer functions to filter fecal residues, and the fine strainer functions to collect eggs

4. Specimen box classification

Ordinary Feces: Spoon Specimen Box

Mucus Feces: Propeller Specimen Box

5. Principle of stool detection

CMOS collection of the appearance, morphology, color, and properties of stool specimens

The data of the CMOS acquisition via microscope inspection are displayed on the monitor and pictured for storage.

Tumor marker examination: colloidal gold test.

Examination of pathogenic microorganisms: detection of colloidal gold.

Parasite inspection: collection of egg microscopy and colloidal gold test.

Product Features
1. Automatic

Automatic quantitative dilution

Mechanical stirring inside a closed environment

Concentrated specimen

Automatic attention counting pool

Each reagent can have multiple reagent positions to ensure continuous operation of the instrument

120 specimens per hour, 7 specimens per specimen

Constant temperature function to ensure correct and stable reagent reaction

2. Airtight

Hermetic specimen

Closed pipe

Instrument sealed

Containment of waste

3. Egg collection

Isolate and concentrate parasite eggs

Automatic filling into counting cell

Automatic egg collection

Product performance

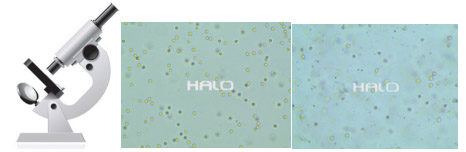

1.High definition imaging system
Provide the best field of vision and clear images, all processes are automated, automatic field of view conversion, automatic focus adjustment, and the images provided are intuitive and clear, which greatly reduces the labor intensity of operators and improves work efficiency.


2. Counting pool: designed according to standard counting board with high precision.

3. Microscopy: automatic three-dimensional humanization operation, get the clearest picture, the picture can also be enlarged during observation, which is convenient for the operator's cell counting and other observations.

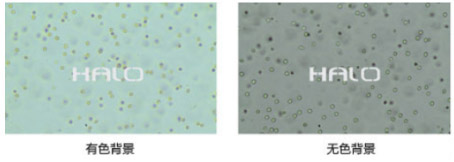

4. Colored background technology
For HALO series machines, the image uses a unique colored background technology to make the image clearer. In particular, the contrast of red blood cells is increased, making the edges, contours and shapes of cells easier to recognize.

5. Sample needle cleaning
Teflon is specially treated without leaving any residue.
Long cleaning time and high cleanliness.
Combining air with cleaning liquid, it produces air bubbles.
Rinse the specimen again and clean it again.
6.Simple man-machine interface and intuitive operation.

7. Multimedia Technology
The operation interface and the browsing report are independently displayed, and the size of the picture is adjusted arbitrarily according to western medicine, which greatly improves the work efficiency.

8. Alarm
When the instrument fails during operation, it will automatically alarm to facilitate quick troubleshooting.
9.Remote technical support
A variety of report formats, complete graphics, for users to choose. It can be connected to the hospital network and supports remote data exchange.
Automatic block removal, can achieve continuous work of 10,000 specimens without blocking.

10.Automatic block removal function to achieve continuous work of 10,000 specimens without blocking.

Report Form

A variety of text reports in compliance with national regulations can be connected to the hospital network and support cloud data.
Comparison of HALO fully automatic feces analyzer and traditional manual feces analyzer

HALO series	Traditional equipment
Fully enclosed: automatic operation, the inspector does not touch the specimen	Open type: manual operation, the inspector touches the specimen
High efficiency: continuous and high-speed processing of multiple specimens	Low efficiency: only specimens can be processed individually
Accurate sampling: standard sampling spoon, quantitative analysis	Random sampling: sampling is not accurate and cannot be quantified
Automatic dilution: quantitative automatic	Manual dilution: inaccurate addition
Specimen is fully mixed: high-speed mechanical stirring and mixing	Insufficient sample stirring: manual stirring
Automatic separation of specimens: automatic operation	Manual separation
Automatic egg collection function (patented technology)	Manual egg collection: complicated operation
No smear: automatic intelligent specimen transfer	Manual smear
Intelligent image processing: automatic photo taking, storage	Manually filled, non-standard, error-prone
Reporting standard: specification report, print automatically	Manual observation, cannot store images

Consumables list

Fecal Constransor	480Pieces/1Carton
FOB Test	40person/case
H.Pylori Ag Test	20person/case
Rotavirus Test	20person/case
Rota/Adeno Combo Test	20person/case
Helicobacter pylori (HP) Antigen detection kit (colloidal gold method)	20person/case
Transferrin (Tf) detection kit	20person/case
Calprotectin detection reagent (colloidal gold method)	20person/case
Diluent	10L
Bleach	10L

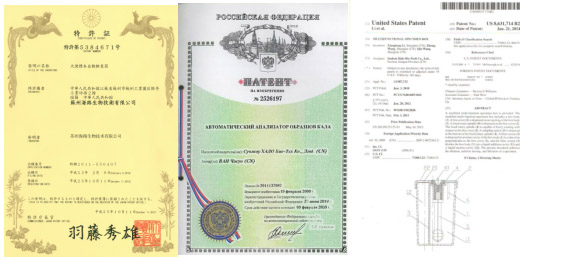

Patent
We obtained USA, Russia, Japanese patent.
